Semiconductor Diode PN Junction Diode Characteristics Apparatus

Description

  • Included: Semiconductor Diode PN Junction Diode Characteristics Apparatus with Regulated Power Supplies + Teacher's Instruction Manual.
  • Used to study Forward & Reverse Characteristics of PN Junction Diode.
  • Instrument comprises of two DC Regulated Power Supplied.

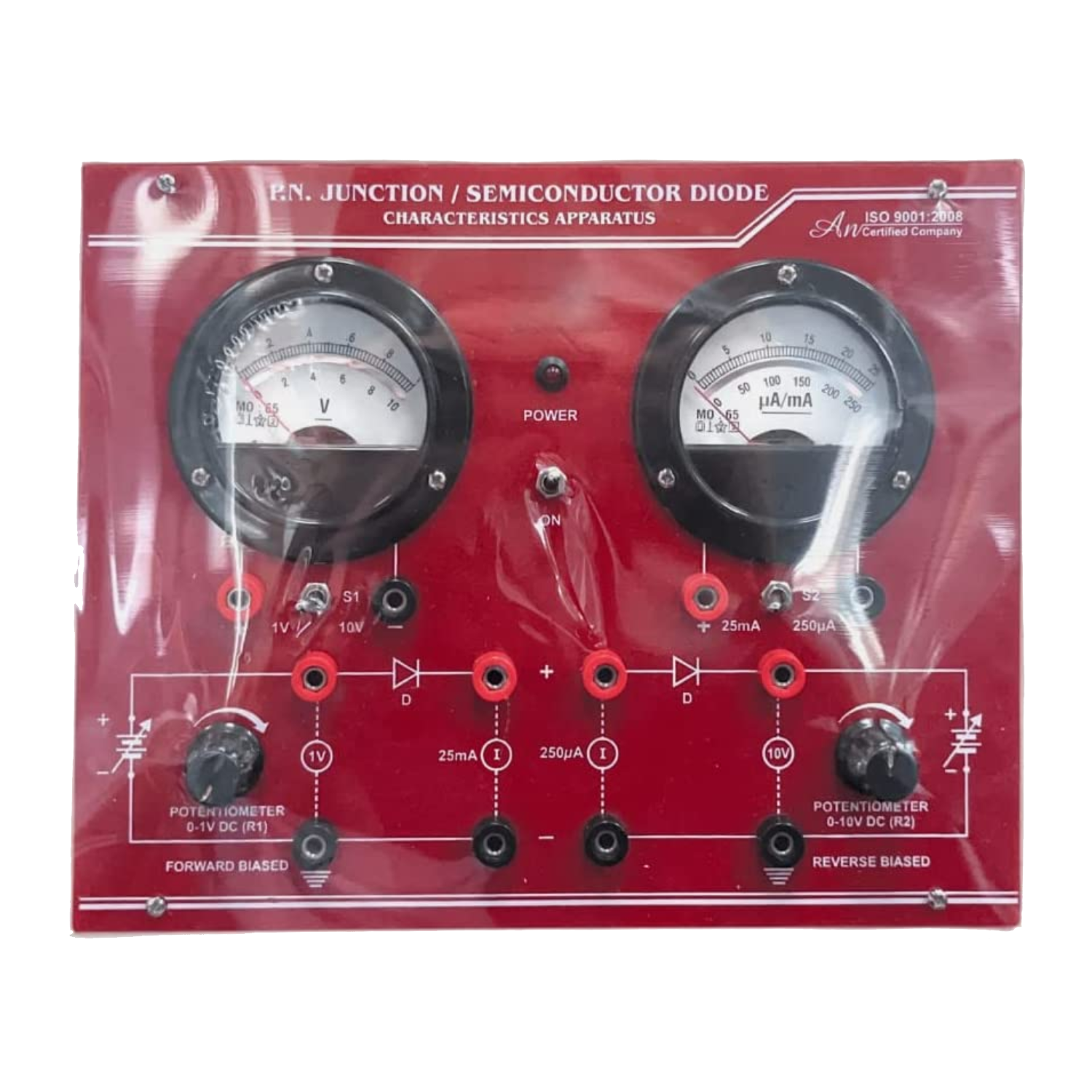

  • Two dual range round meters for voltage and current measurement are provided on the front panel.
  • Connections of supplies, meters and PN Junction diode are brought out at 4mm sockets.

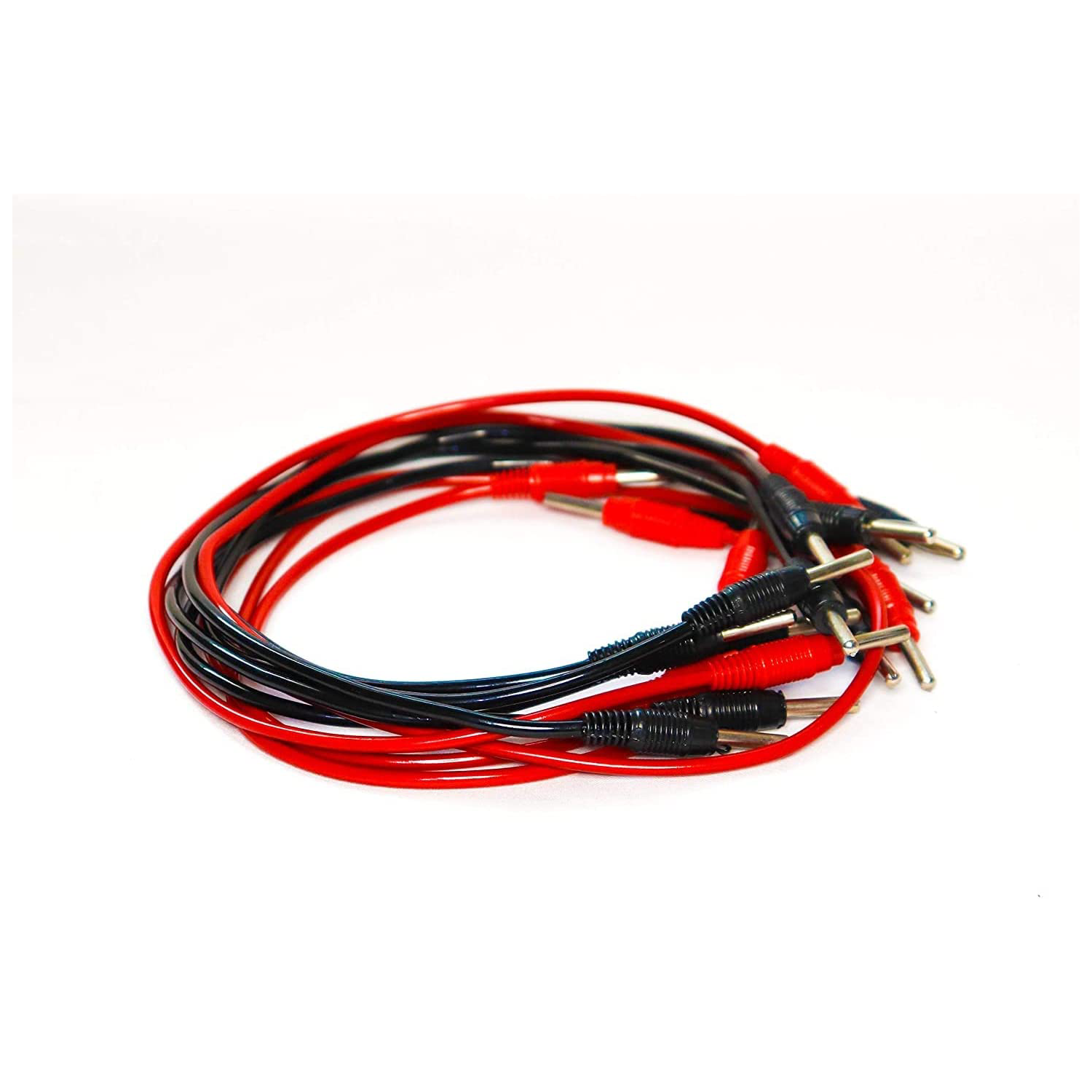

  • 4mm stackable lead and instruction manual is also provided with instrument.
  • Two round meters voltmeter and ammeter are used for current and voltage measurement, Knobs are provided for adjustment.
  • Kit has inbuilt ic regulated power supply to better performance in a dc voltage.
  • Designed for use in professional laboratories but is an ideal choice for science classrooms and household use.
Product form

Included: Semiconductor Diode PN Junction Diode Characteristics Apparatus with Regulated Power Supplies + Teacher's Instruction Manual. Used to study Forward... Read more

Free pickup in our shop(s)

SKU: VMB0BXB4QV2L
Barcode: VMB0BXB4QV2L

2 in stock

78,620 OMR 75,790 OMR Excl. VAT

    • Shipped today? Order within: Feb 21, 2026 16:00:00 +0400

    Description

    • Included: Semiconductor Diode PN Junction Diode Characteristics Apparatus with Regulated Power Supplies + Teacher's Instruction Manual.
    • Used to study Forward & Reverse Characteristics of PN Junction Diode.
    • Instrument comprises of two DC Regulated Power Supplied.
    • Two dual range round meters for voltage and current measurement are provided on the front panel.
    • Connections of supplies, meters and PN Junction diode are brought out at 4mm sockets.
    • 4mm stackable lead and instruction manual is also provided with instrument.
    • Two round meters voltmeter and ammeter are used for current and voltage measurement, Knobs are provided for adjustment.
    • Kit has inbuilt ic regulated power supply to better performance in a dc voltage.
    • Designed for use in professional laboratories but is an ideal choice for science classrooms and household use.
